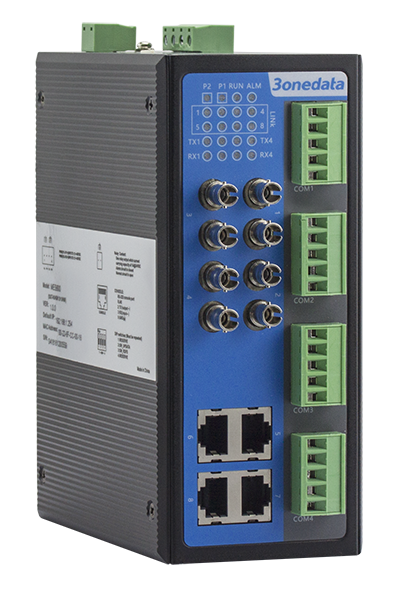

MES600 Series
(2022年04月12日)100M Layer 2 Managed Electricity Industrial Ethernet Switch
Support up to 4 100M fiber ports, 4 100M copper ports, 4 optional 3IN1 serial ports
Adopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
Support dual power supply inputs, input voltage: 12~48VDC
Support -40~85℃ wide operating temperature range
MES600 series are 100M layer 2 managed industrial Ethernet switches. This series have two types of products, and the products provide 4 100M copper ports and 4 100M fiber ports and 4 optional serial ports. They adopt DIN-Rail mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
They are designed to conform to the industrial standards of iec 61850 switch and IEEE1613. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. The DIP switch could achieve device rebooting and upgrading. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for power industry and can be widely used in the controller layer and process layer network of substations.
Features and Benefits
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP sever and DHCP client could be used for allocating IP address of different strategies
File management is convenient for rapid configuration and online upgrade of the device
Log management records boot information, operation information and connection information
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
MAC port locking could enhance the flexibility and security of network
E-mail alarm is convenient for discovering faults in time during remote management
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unknown unicast
VLAN can simplify the network planning
Port trunking and LACP can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
GMRP and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
(Optional) support multiple operating modes of serial port: TCP Server, TCP Client, UDP, TCP auto, Realcom, advanced TCP Server and advanced UDP
If you want to know more about 3onedata converter, please contact us.
