Product Description---https://www.tofsensors.com

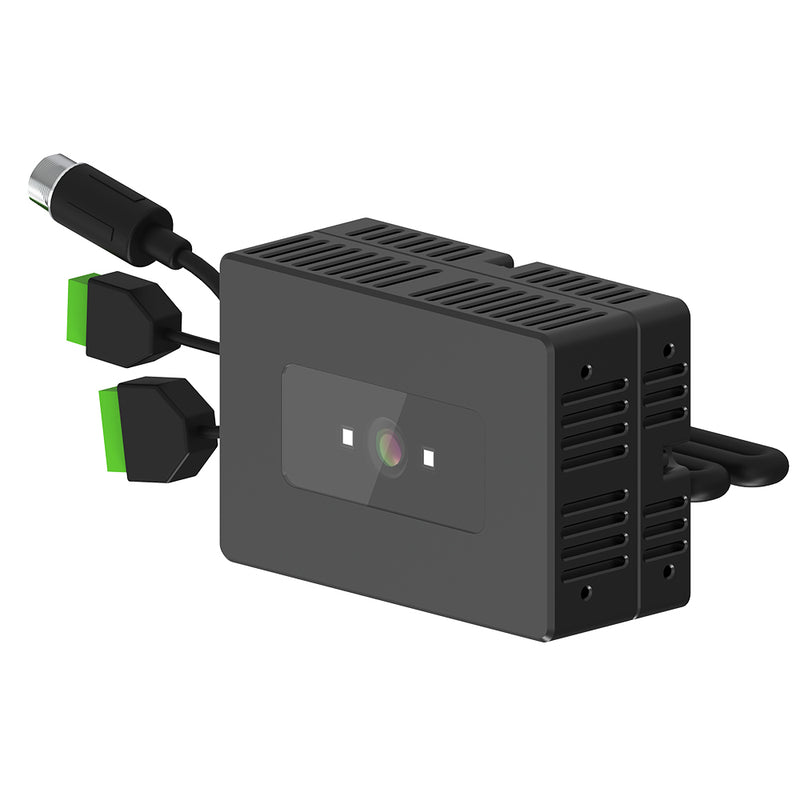

Introducing CS40,equipped with a high-resolution 640*480 PToF image sensor, utilizing PToF technology to capture three-dimensional information of objects and spaces. With its expansive field of view, Ethernet transmission, and other outstanding features, CS40 delivers a seamless and efficient 3D perception capability to users.

This product adopts a high-performance hardware processing platform, allowing users to seamlessly integrate various application algorithms, thereby reducing dependence on backend application platforms. Supporting the TCP/IP network communication protocol, CS40 facilitates long-distance data transmission.

Key Features:
• Ethernet transmission for low-latency data transfer
• High dynamic measurement range
• Sunlight resistance (up to 120Klux)
• Large field of view (H90°xV70°)

Ideal Applications:
• Outdoor obstacle avoidance
• Pallet recognition
• Visual positioning and guidance
• Security surveillance

Product Characteristics

Technology

Time-of-Flight technology

Image Sensor

Nuvoton

Laser

infrared: 940 nm VCSEL * 2

Image Resolution 3D [px]

640 x 480

FoV 3D [°]

90 x 70

Max. Frame Rate 3D [Hz]

20

Image Resolution RGB [px]

NA

FoV RGB [°]

NA

Max. Frame Rate RGB [Hz]

NA

Measuring Distance [mm]

300~4000

Platform

Windows, Linux , ROS

Software/Programming

C, C++, C#, Python

Electrical Data

Operating Voltage [V]

12

Current Consumption [mA]

220

Power Consumption [W]

2.64

Overload Protection

NA

Interfaces

Communication Interface

100 Gigabit Ethernet

Protocol

TCP/IP;

Factory Settings

IP Address: 192.168.1.150; Subnet Mask: 255.255.255.0; Gateway IP Address: 192.168.1.101

Operating Conditions

Ambient Temperature [°C]

-20...60

Storage Temperature [°C]

-20...70

Enclosure Protection

Mechanical Data

Weight [g]

445

Dimensions [mm]

104 x 70 x 43.5

Enclosure Materials

AL6061

Connector

M12

Accessories

RJ45 to Aviation cable x 1, 12Vpower x1

Compliance

Eye Safety

Class1
