MTP cable assemblies/MPO cable assembly use MPO or MTP China multi-fiber connectors. MTP/MPO Fiber Patch Cord greatly saves space and is very convenient to use. Based on single ferrule MT technology, the MPO Fiber Patch Cord assemblies provide up to 72 fiber connections in a single point, reducing the physical space and labor requirement, while providing the same bandwidth capacity of a multi-fiber cable with individual fiber connector terminations per cable.

Typically with MT series like MTP/MPO fiber connectors, these MTP/MPO Patch Cord features multi-fiber connections in the same single-core fiber optic patch cord. Except for Standard MTP/MPO cable assemblies including MTP/MPO harness cable, shuffle cable, hydra cable and trunk cable, we also provide other types like IP68 MTP/MPO fiber cable, MTP/MPO loopback adapter and so on for different applications.

T & S MTP / MPO fiber optic cable assemblies meets the requirements of IEC61754, IEC61755, TIA568, GR1435 and other standards, and adopts a push-pull locking structure with male and female heads to ensure butt tightness and low loss. Single head loss of SM product: conventional product IL ≤ 0.75db, RL ≥ 60dB; elite product IL ≤ 0.35db, RL ≥ 60dB. Single head loss of MM product: conventional product IL ≤ 0.60db, RL ≥ 20dB; elite product IL ≤ 0.35db, RL ≥ 20dB. The optical fiber channel is used for termination and supports high bandwidth applications. It is specially designed to save cable management time and high-density fiber distribution area. The outer diameter of the optical cable can match the pre-termination of Ø 2.0 ~ 5.5mm, and the spring elasticity of 9.8N and 20n can be matched; mm supports 10g, 40g, 100g and 400g applications.

MTP/MPO TRUNK CABLE
MTP/MPO trunk cableing connects MTP/MPO modules together as a permanent link. They facilitate rapid deployment of high density backbone cabling in data centers and other high density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug and play modules or MTP/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP/MPO panel with plug-and play module. They are used to interconnect module cassettes, panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.

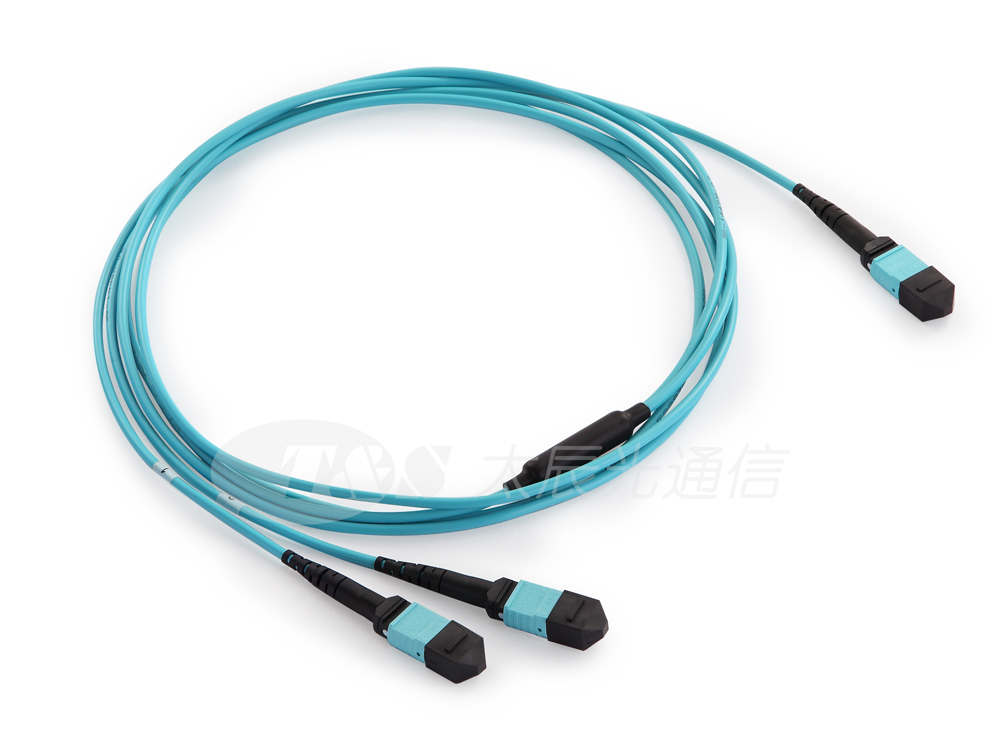

MTP/MPO SHUFFLE CABLE
Like MTP/MPO cable, MTP/MPO Shuffle cable is also used for connecting MTP modules together as a permanent link, and it also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection of the extension of the pre-terminated trunk cable by MTP/MPO panel. Normally, the shuffle cables are used to interconnect cassettes, panels, or ruggedized MTP/MPO fanouts, spanning MDA, HDA, and EDA zones. The difference is that its optical fiber routing is formulated according to the requirements of the optical connection at the construction site, which can realize special optical fiber routing different from the conventional polarity, reducing network installation or reconfiguration time and cost.

MTP/MPO HYDRA CABLE
MPO/MTP Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.

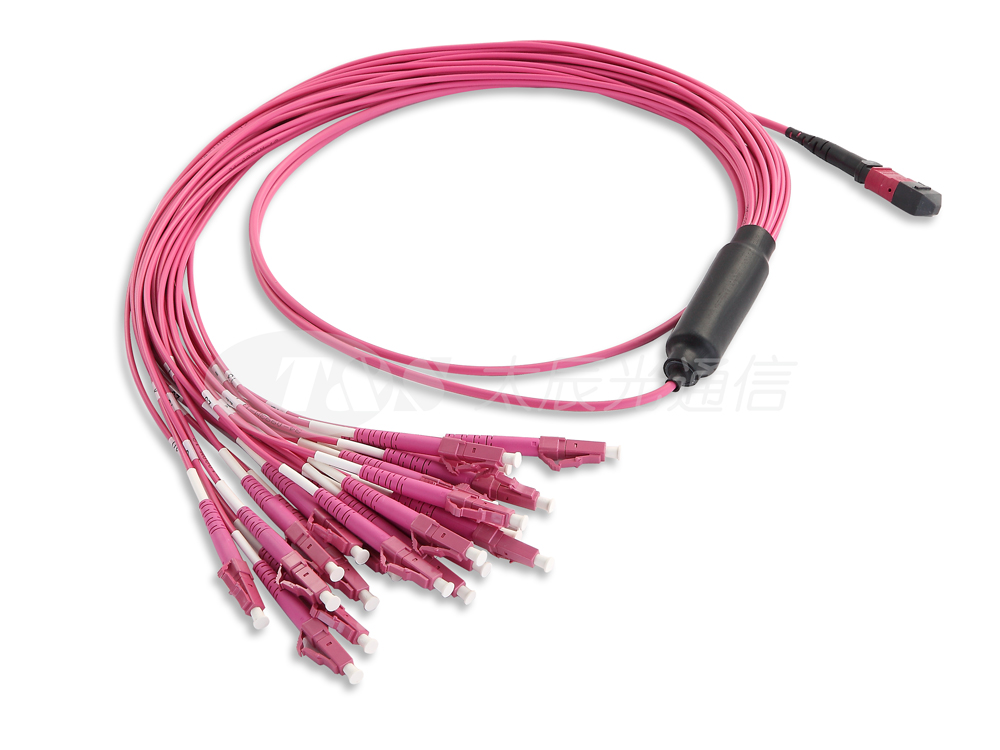

MTP/MPO HARNESS CABLE
MTP/MPO harness cables are a kind of MTP/MPO fanout harness cable or breakout cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to the fiber rack systems. The MTP harness cables are fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same cabinet, the longer patch cords can provide flexibility at any location, and the branch cables can be winded into the vertical cable organizer.

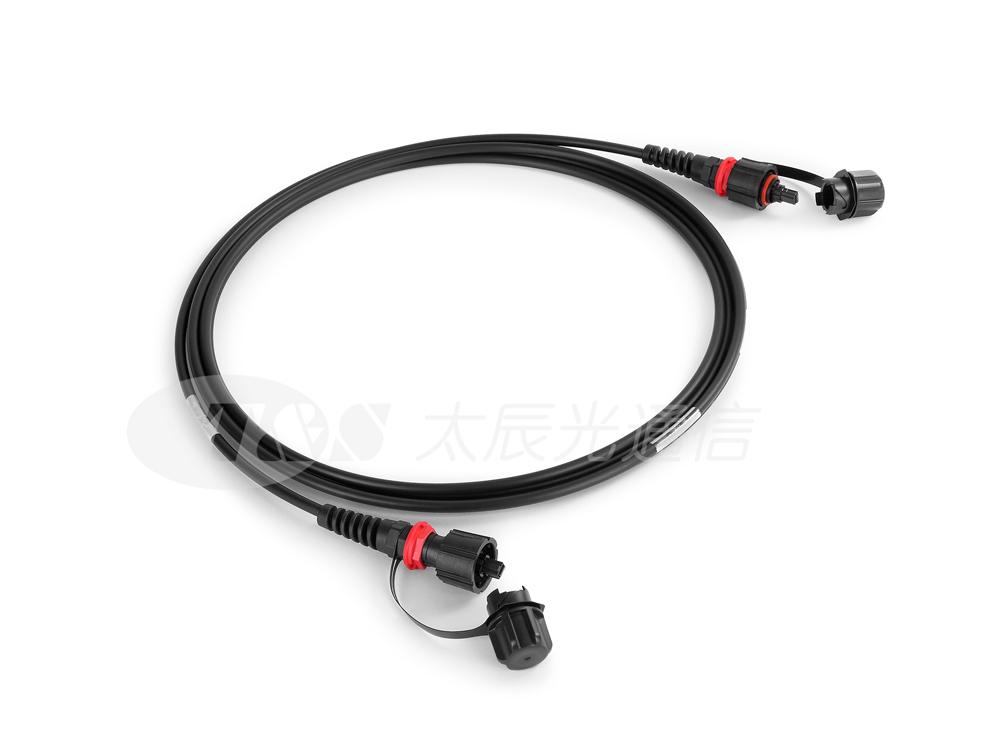

IP MTP/MPO FIBER CABLE
T & S MTP / MPO IP waterproof jumper is used for outdoor laying. It has the characteristics of high-temperature resistance and high strength. It is suitable for all kinds of harsh outdoor environments. It meets the IP67 / 68 environmental sealing grade and meets the ec60603-7 interface standard. There are SM / om1 / om2 / OM3 / OM4 / om5 optical fiber models, TIA568 type A, B, C standard polarity and customized product polarity, male and female head, conventional and low loss specifications.

MTP/MPO LOOPBACK
T & S MTP / MPO fiber loop is a device used for parallel connection tests and an aging test of optical communication equipment. Well-designed by engineers at T&S, our MTP/MPO loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MTP / MPO fiber loop provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. T & S MTP / MPO fiber loop has 8F, 12F, 16F, 24F, 32F channels with low loss and conventional loss, single-mode and multi-mode options. Our MTP/MPO loopback adapter is now widely used for optical network equipment self-test, network diagnosis, and test, etc.

FAQs of MTP/MPO Cable Assembly
What Is The Minimum Length For A Mtp/mpo Trunk Cable? 
For trunk cable, minimum length is 0.3 in general. For customized requirements, please contact T&S sales team for details.

MTP Connector and MPO Connector
What's The Difference Between Ofnp And Lszh Cable Jacket?

TS Communication is a professional fiber optic accessories suppliers. T&S Communications provides high quality and reliable fiber stub for TOSA/ROSA Receptacle. We have a proven polishing process using specially designed high precision machines. With an experienced manufacturing process, T&S Communications fiber stub delivers the highest performance and lowest defect rate.
