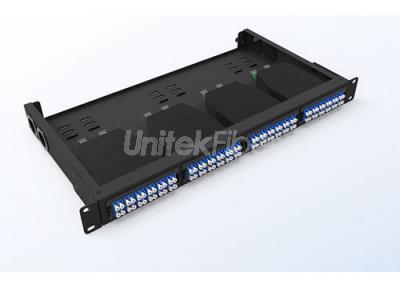

1U Jack Mounted 96fibers MPO & MTP Optical Patch Panel

(2020年04月02日)

http://www.unitekfiber.com/fiber-optic/1u-jack-mounted-96fibers-optical-patch-panel.html

Description:
1U jack mounted MPO & MTP optical patch panel is with standard 19 inches and fixed type which can be applied in the computer center, computer room, database and other high-density wiring occasions.

The jack mounted MPO patch panel & MTP patch panel is simple in structure, with a panel bottom, a panel cover and a panel bracket. Loaded MPO & MTP module cassette or duplex LC, SC, ST and FC adapter panel plates on the panel bracket and loaded splice tray in the middle of the panel to connect and splice fiber cables. There are two methods for splicing fiber cables : MPO/MTP module box and fusion fiber cables. jack mounted MPO & MTP optical patch panel applies in high-density data base systems and fusible fiber splitting occasions. The MPO module box is ABS material. Four 24-pin MPO/MTP module boxes can be installed side by side on the panel.

Features:
High density wiring application condition
Standard 19''
High-density, 1U 96 fibers
Fixed type design, easily installed
Lightweight ABS MPO module box
Sprayed surface treatment process
Customizable color and LOGO

Application:
Applied in the computer center and computer room
Suitable for high density date center
Suitable for base station cabling construction.
Applied for high density wiring occasions.
