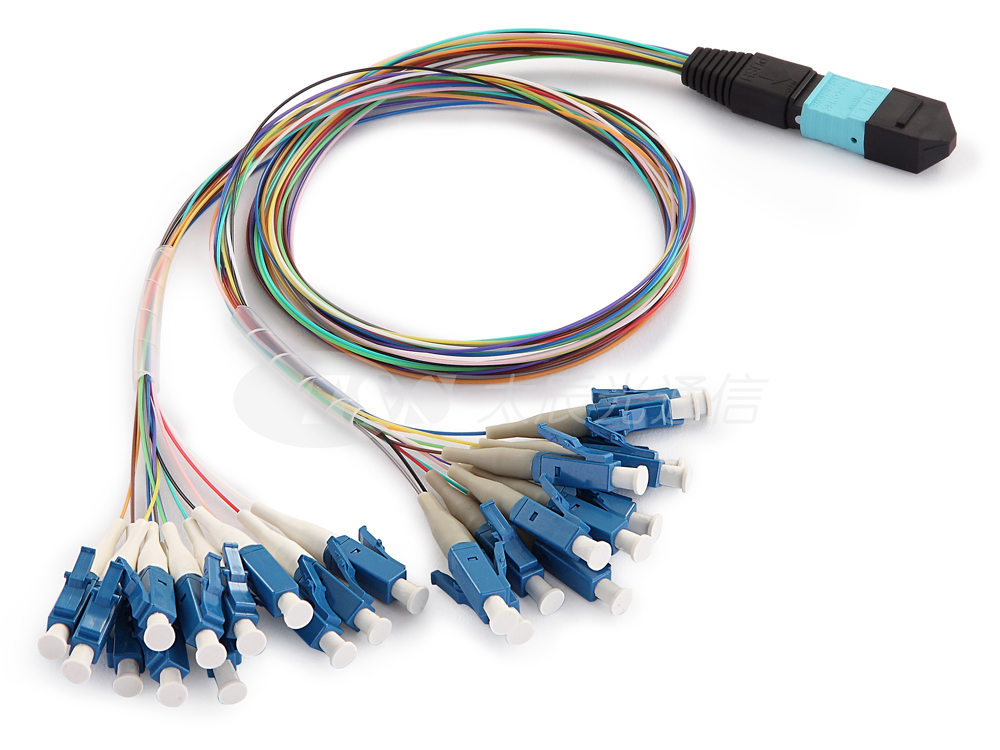

MTP/MPO HYDRA CABLE
MPO/MTP Hydra cable assemblies is deployed inside plug and play cassette modules. It is used for multi-fiber to single-fiber splitting out interconnects. This solution is a 12-colored 0.9mm cable utilizing an MPO/MTP connector on one end and generic connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle with plug and play modules, MPO/MTP Adapter Plates, and other solutions. It is fully configurable, available in 8/12/16/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and Single-mode fiber types.

Features of MTP/MPO Hydra Cable
Low loss performance

Fiber count available in 8~24

Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request

Option for LSZH, PVC or Hytrel loose tube

100% factory terminated and tested

Applications of MTP/MPO Hydra Cable
Data Center Interconnect

Backbone Installations

Telecommunication Networks

Broadband/CATV Networks

LAN/WAN Premises

Standards Compliance of MTP/MPO Hydra Cable
TIA/EIA-568.3-D and ISO/IEC 11801

IEC-61754 & EIA/TIA-604-5

NFPA 262 or IEC 60332

Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC

EN 50575

Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE

Specifications of MTP/MPO Hydra Cable
General Specification
Technical Specification
Construction
Description

Fiber Count
8~24 Fibers

Fiber Mode
Single mode: OS2/G657 9/125um
Multimode: OM4 50/125um, OM3 50/125um

Fiber Brand
SMF-28® Ultra optical fiber
Corning ClearCurve® multimode fiber

Cable Jacket Ratings
PVC, LSZH, Hytrel

Cable Jacket Color
Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Purple, Pink, Aqua

Polarity
A/B/C or Customized

MTP/
MPO
Ferrule
12F/16F/ 24F

Ferrule Brand
US Conec, HANKUSAN, Nissin

Connector Type
MTP Female, Male; MPO Female, Male

Connector Brand
US Conec MTP, Senko MPO, Nissin MPO, Sanwa MPO, FURUKAWA MPO

Connector Color
Ferrule
SM(APC)
SM(PC)
OM3
OM4
or
Customized

Low loss
Yellow
Yellow
Aqua
Magenta

Standard
Green
Blue
Aqua
Magenta

Boot Color
Green/Black/ or Customized

Single-fiber connector
LC, SC, FC, etc.

Operating Temperature
-20°C to +70°C

Storage Temperature
-40°C to +85°C
