MTP/MPO LOOPBACK
T & S MTP / MPO fiber loop is a device used for parallel connection tests and an aging test of optical communication equipment. Well-designed by engineers at T&S, our MTP/MPO loopback adapter can transmit the optical network signal from the transmitter to the receiver, thereby forming the optical signal receiving and transmitting loop. MTP / MPO fiber loop provides a fast and efficient way to test the transmission capacity and receiving sensitivity of optical network equipment. T & S MTP / MPO fiber loop has 8F, 12F, 16F, 24F, 32F channels with low loss and conventional loss, single-mode and multi-mode options. Our MTP/MPO loopback adapter is now widely used for optical network equipment self-test, network diagnosis, and test, etc.

Specifications of MTP/MPO Loopback
General Specification
Technical Specification
Construction
Description

Fiber Count
2fibers for duplex type; 2-24fibers for multi-fiber connector

Fiber Mode
Single mode: OS2/G657 9/125um
Multimode: OM1 62.5/125 um OM2 OM3OM4 50/125um;

Fiber Brand
Corning SMF-28® Ultra optical fiber
Corning ClearCurve® multimode fiber

Cable Jacket Ratings
Low Smoke Zero Halogen (LSZH)
Riser (OFNR)
Plenum (OFNP)

Cable Jacket Color
OS2/G657: Yellow
OM1&OM2: Orange
OM3: Aqua; OM4: Aqua/Magenta
or Customized

Polarity
Type A, Type B, Type C (TIA-568.3-D) or Customized

Connector Type
SC LC MPO MTP

Connector Color
(SC LC)

SM(APC)
SM(PC)
OM3
OM4
or customized

Green
Blue
Aqua
Magenta/Aqua

Connector Color
(MPO MTP)

SM(APC)
SM(PC)
OM3
OM4
or customized

Low Loss
Yellow
Yellow
Aqua
Magenta/Aqua

Standard
Green
Blue
Aqua
Magenta/Aqua

Loopback housing color
black

Operating Temperature
-20°C to + 70°C

Storage Temperature
-40°C to + 85°C

MTP Loopback with Housing and Pull-tab

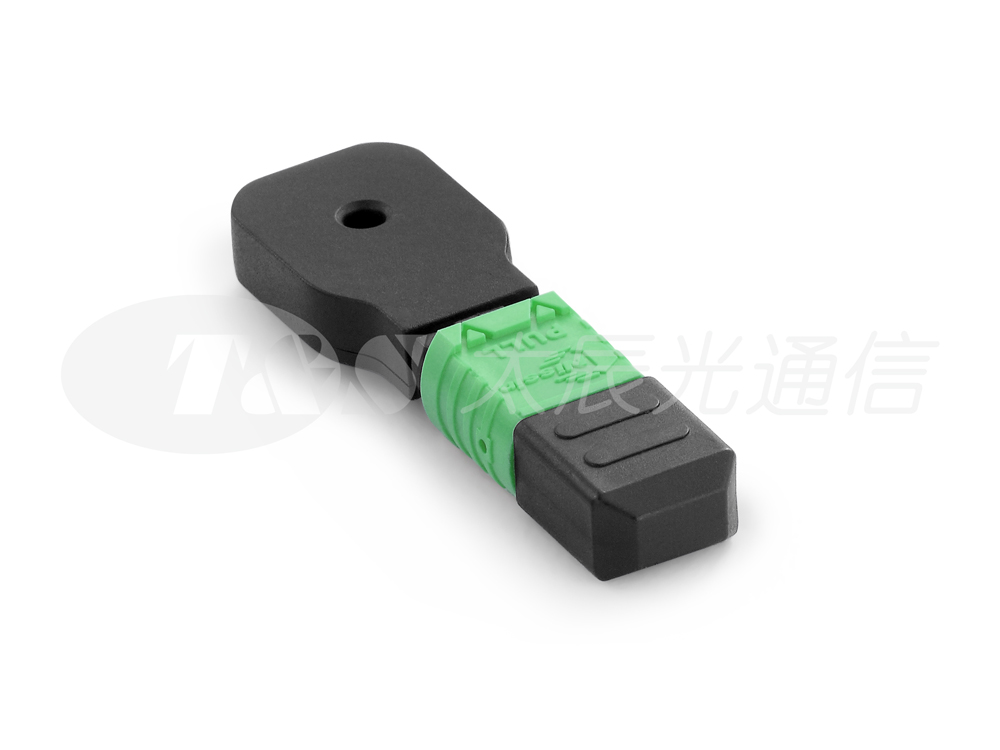

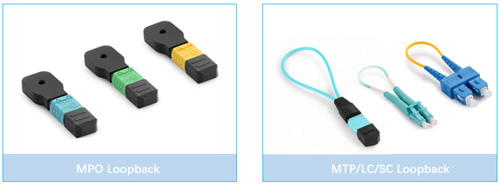

The MTP loopback occupies both ends of fiber in a duplex connector or a multi-fiber connector. This MTP lookback with housing and pull-tab can provide an effective solution so as to test the emission ability of the network equipment and receive sensitivity. Especially in 40/100G network communication, our MTP loopback devices can achieve optical fiber network in pairs on a single element or interface and conduct effective tests and evaluation of the Internet through back signal positioning.
